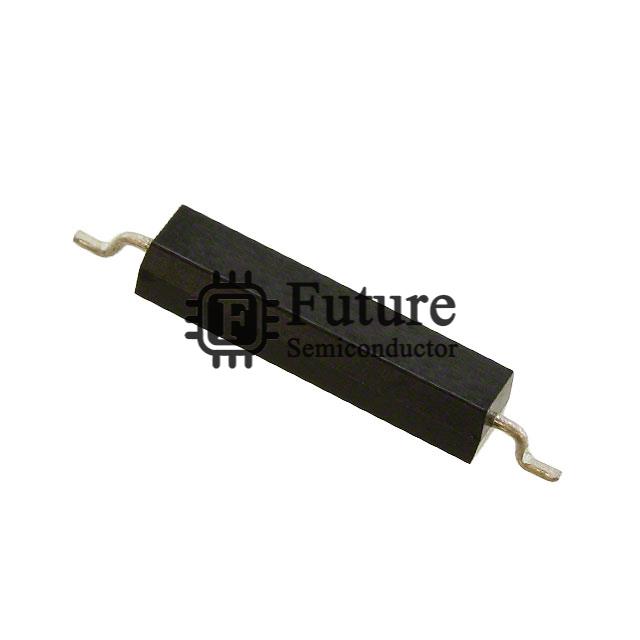

Littelfuse Inc. 59170-1-U-00-C

Name: 59170-1-U-00-C
Brand: Littelfuse Inc.
SKU: 59170-1-U-00-C
Price: 1.648 USD
Availability: InStock
Rating: 5.0 (414 reviews)

MFG Part Number: 59170-1-U-00-C

Available Quantity: 63600 Pieces

Reference Price: USD 1.648

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Littelfuse Inc.

Brief Description: 59170 SWITCH REED SPST-NO 350MA 140V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Magnetic, Reed Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 59170-1-U-00-C.pdf

Request Quotation for 59170-1-U-00-C

Company Name

Contact Person

Phone Number

Address

Email

Message

59170-1-U-00-C Specifications

Manufacturer Part Number	59170-1-U-00-C
Future Part Number	FT-59170-1-U-00-C
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	59170
59170-1-U-00-C Status (Lifecycle)	In Stock
Part Status	Active
Type	Molded Body
Circuit	SPST-NO
Operate Range	20 ~ 25AT
Release Range	-
Current - Switching	350mA (AC), 500mA (DC)
Voltage - Switching AC	140V
Voltage - Switching DC	200V
Power - Rated	10W
Operate Time	1ms
Release Time	0.5ms
Mounting Type	Surface Mount
Termination Style	Gull Wing
Length - Overall	0.640" (16.26mm)
Size - Body	0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm)
Height Above Board	0.095" (2.41mm)
Operating Temperature	-40°C ~ 125°C
Capacitance	0.3pF
Current - Carry	800mA (DC)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
59170-1-U-00-C Weight	Contact Us
Replacement Part Number	59170-1-U-00-C-FT
