Home / Products / Filters / Common Mode Chokes / CM2722R151R-00

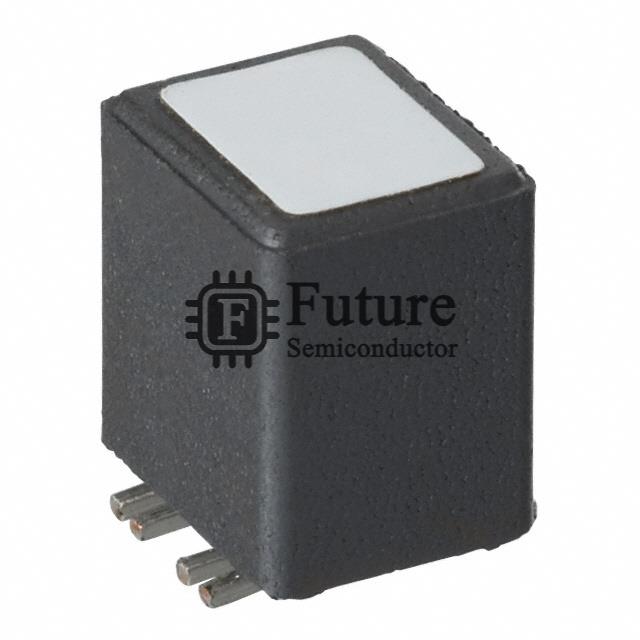

Laird-Signal Integrity Products CM2722R151R-00

Name: CM2722R151R-00
Brand: Laird-Signal Integrity Products
SKU: CM2722R151R-00
Availability: InStock
Rating: 4.6 (114 reviews)

MFG Part Number: CM2722R151R-00

Available Quantity: 40570 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Laird-Signal Integrity Products

Brief Description: CM CMC 5A 4LN 150 OHM SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CM2722R151R-00.pdf

Request Quotation for CM2722R151R-00

Company Name

Contact Person

Phone Number

Address

Email

Message

CM2722R151R-00 Specifications

Manufacturer Part Number	CM2722R151R-00
Future Part Number	FT-CM2722R151R-00
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	CM
CM2722R151R-00 Status (Lifecycle)	In Stock
Part Status	Obsolete
Filter Type	Power Line
Number of Lines	4
Impedance @ Frequency	150 Ohms @ 100MHz
Inductance @ Frequency	-
Current Rating (Max)	5A
DC Resistance (DCR) (Max)	20 mOhm
Voltage Rating - DC	-
Voltage Rating - AC	-
Operating Temperature	-55°C ~ 125°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.275" L x 0.265" W (6.99mm x 6.73mm)
Height (Max)	0.331" (8.40mm)
Package / Case	Vertical, 8 Flat Lead
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CM2722R151R-00 Weight	Contact Us
Replacement Part Number	CM2722R151R-00-FT
