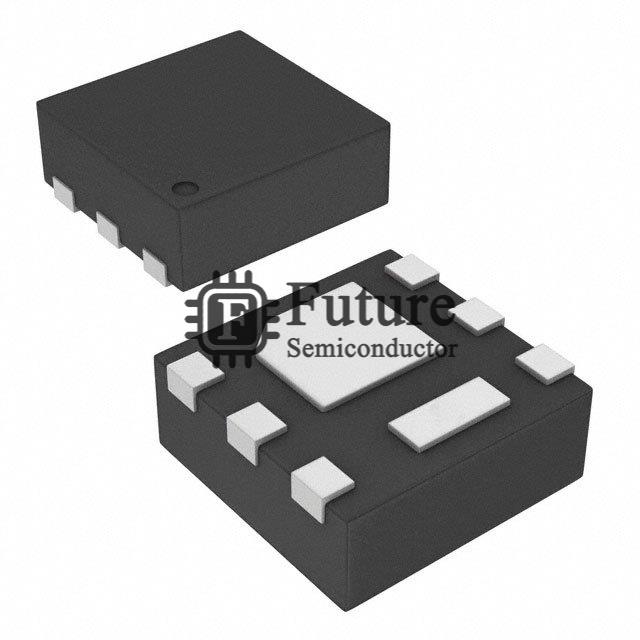

Texas Instruments CSD13202Q2

Name: CSD13202Q2
Brand: Texas Instruments
SKU: CSD13202Q2
Price: 0.15488 USD
Availability: InStock
Rating: 4.8 (169 reviews)

MFG Part Number: CSD13202Q2

Available Quantity: 79340 Pieces

Reference Price: USD 0.15488

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Texas Instruments

Brief Description: NexFET™ MOSFET N-CH 12V 76A 6SON

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CSD13202Q2.pdf

Request Quotation for CSD13202Q2

Company Name

Contact Person

Phone Number

Address

Email

Message

CSD13202Q2 Specifications

Manufacturer Part Number	CSD13202Q2
Future Part Number	FT-CSD13202Q2
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	NexFET™
CSD13202Q2 Status (Lifecycle)	In Stock
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	22A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	9.3 mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.6nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	997pF @ 6V
FET Feature	-
Power Dissipation (Max)	2.7W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WSON (2x2)
Package / Case	6-VDFN Exposed Pad
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CSD13202Q2 Weight	Contact Us
Replacement Part Number	CSD13202Q2-FT
