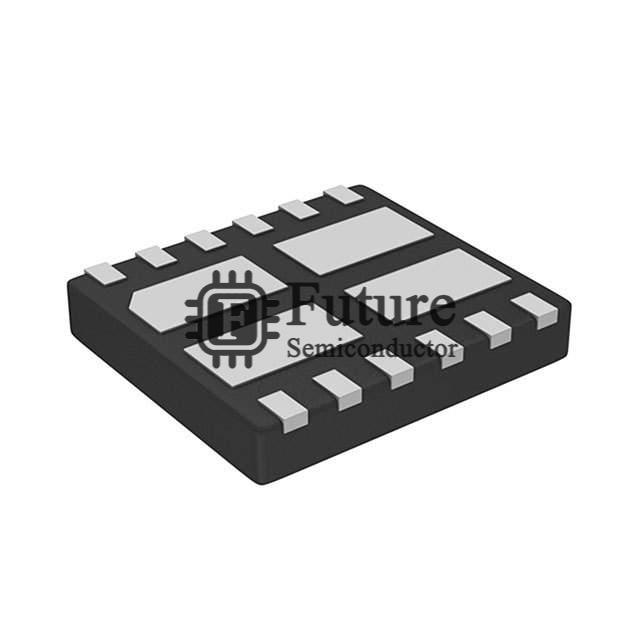

Diodes Incorporated DMHC10H170SFJ-13

Name: DMHC10H170SFJ-13
Brand: Diodes Incorporated
SKU: DMHC10H170SFJ-13
Price: 0.49416 USD
Availability: InStock
Rating: 5.0 (768 reviews)

MFG Part Number: DMHC10H170SFJ-13

Available Quantity: 26470 Pieces

Reference Price: USD 0.49416

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Diodes Incorporated

Brief Description: - MOSFET 2N/2P-CH 100V DFN5045-12

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Arrays

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: DMHC10H170SFJ-13.pdf

Request Quotation for DMHC10H170SFJ-13

Company Name

Contact Person

Phone Number

Address

Email

Message

DMHC10H170SFJ-13 Specifications

Manufacturer Part Number	DMHC10H170SFJ-13
Future Part Number	FT-DMHC10H170SFJ-13
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
DMHC10H170SFJ-13 Status (Lifecycle)	In Stock
Part Status	Active
FET Type	2 N and 2 P-Channel (H-Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	2.9A, 2.3A
Rds On (Max) @ Id, Vgs	160 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1167pF @ 25V
Power - Max	2.1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	12-VDFN Exposed Pad
Supplier Device Package	V-DFN5045-12
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
DMHC10H170SFJ-13 Weight	Contact Us
Replacement Part Number	DMHC10H170SFJ-13-FT
