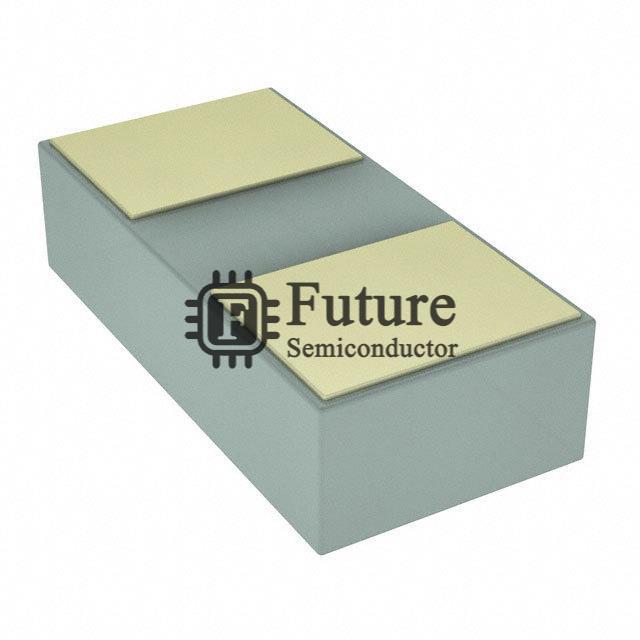

Infineon Technologies ESD108B1CSP0201XTSA1
- MFG Part Number
- ESD108B1CSP0201XTSA1
- Available Quantity
- 25080 Pieces
- Reference Price
- USD 0.021424
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Infineon Technologies
- Brief Description
- - TVS DIODE 5.5V 41V WLL-2-1
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- TVS - Diodes
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- ESD108B1CSP0201XTSA1.pdf
ESD108B1CSP0201XTSA1 Specifications
| Manufacturer Part Number | ESD108B1CSP0201XTSA1 |
|---|---|
| Future Part Number | FT-ESD108B1CSP0201XTSA1 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| ESD108B1CSP0201XTSA1 Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | - |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 9.5V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 41V |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power - Peak Pulse | 27.5W |
| Power Line Protection | No |
| Applications | HDMI |
| Capacitance @ Frequency | 0.28pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | WLL-2-1 |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| ESD108B1CSP0201XTSA1 Weight | Contact Us |
| Replacement Part Number | ESD108B1CSP0201XTSA1-FT |
