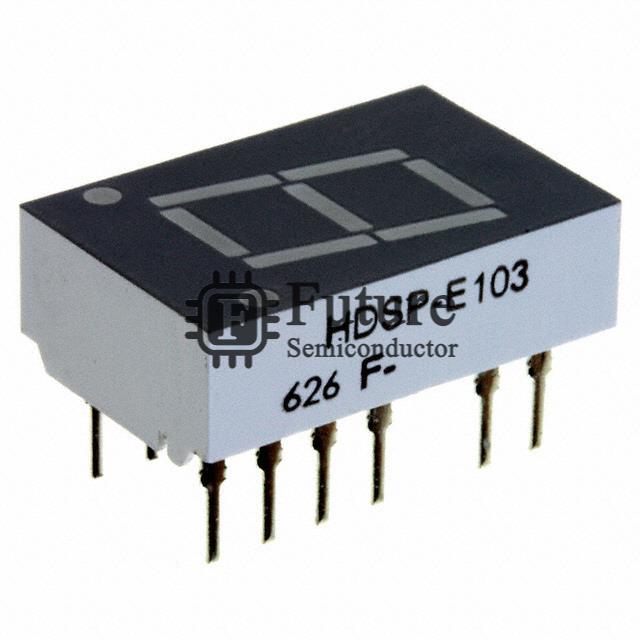

Broadcom Limited HDSP-E103

Name: HDSP-E103
Brand: Broadcom Limited
SKU: HDSP-E103
Price: 1.55344 USD
Availability: InStock
Rating: 4.7 (372 reviews)

MFG Part Number: HDSP-E103

Available Quantity: 55440 Pieces

Reference Price: USD 1.55344

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Broadcom Limited

Brief Description: - LED 7-SEG 10.9MM CC RED RHD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Display Modules - LED Character and Numeric

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: HDSP-E103.pdf

Request Quotation for HDSP-E103

Company Name

Contact Person

Phone Number

Address

Email

Message

HDSP-E103 Specifications

Manufacturer Part Number	HDSP-E103
Future Part Number	FT-HDSP-E103
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
HDSP-E103 Status (Lifecycle)	In Stock
Part Status	Active
Display Format	-
Number of Characters	1
Size / Dimension	0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm)
Digit/Alpha Size	0.43" (11.00mm)
Display Type	7-Segment
Common Pin	Common Cathode
Color	Red
Voltage - Forward (Vf) (Typ)	1.7V
Current - Test	5mA
Millicandela Rating	3.9mcd
Wavelength - Peak	645nm
Power Dissipation (Max)	37mW
Package / Case	14-DIP (0.300", 7.62mm), 10 Leads
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
HDSP-E103 Weight	Contact Us
Replacement Part Number	HDSP-E103-FT
