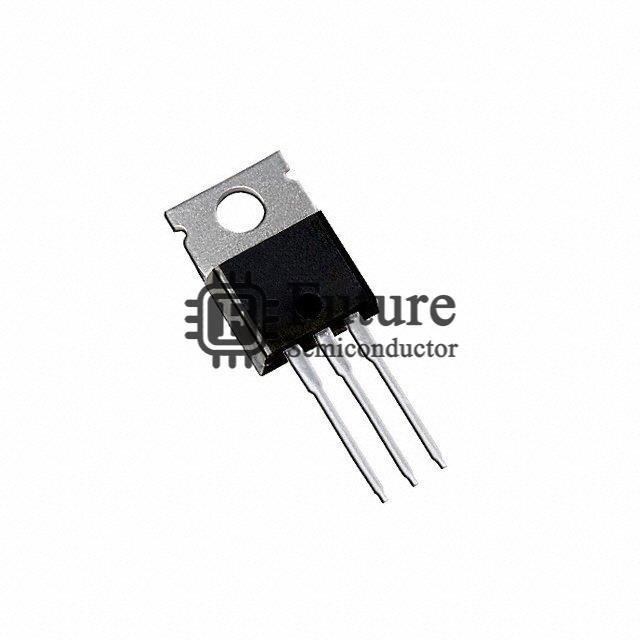

Infineon Technologies IRG4BC20S

Name: IRG4BC20S
Brand: Infineon Technologies
SKU: IRG4BC20S
Availability: InStock
Rating: 4.5 (74 reviews)

MFG Part Number: IRG4BC20S

Available Quantity: 70630 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Infineon Technologies

Brief Description: - IGBT 600V 19A 60W TO220AB

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - IGBTs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: IRG4BC20S.pdf

Request Quotation for IRG4BC20S

Company Name

Contact Person

Phone Number

Address

Email

Message

IRG4BC20S Specifications

Manufacturer Part Number	IRG4BC20S
Future Part Number	FT-IRG4BC20S
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
IRG4BC20S Status (Lifecycle)	In Stock
Part Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	19A
Current - Collector Pulsed (Icm)	38A
Vce(on) (Max) @ Vge, Ic	1.6V @ 15V, 10A
Power - Max	60W
Switching Energy	120µJ (on), 2.05mJ (off)
Input Type	Standard
Gate Charge	27nC
Td (on/off) @ 25°C	27ns/540ns
Test Condition	480V, 10A, 50 Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220AB
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
IRG4BC20S Weight	Contact Us
Replacement Part Number	IRG4BC20S-FT
