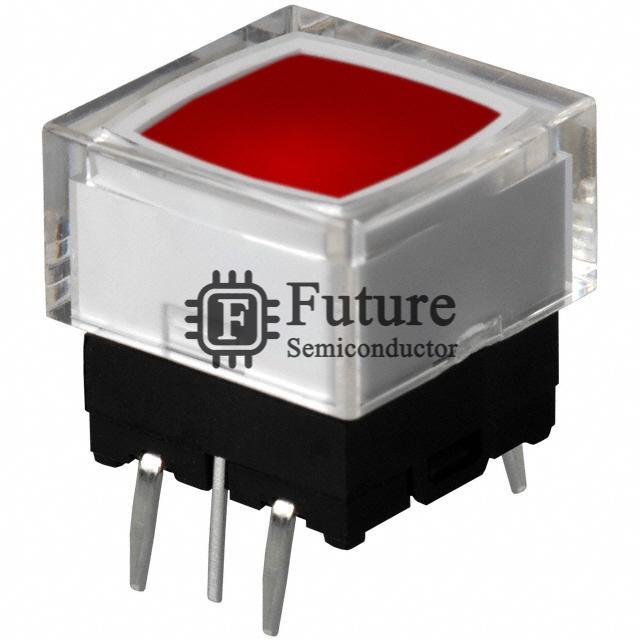

NKK Switches JB15LPC-JC

Name: JB15LPC-JC
Brand: NKK Switches
SKU: JB15LPC-JC
Price: 3.552 USD
Availability: InStock
Rating: 4.9 (537 reviews)

MFG Part Number: JB15LPC-JC

Available Quantity: 72840 Pieces

Reference Price: USD 3.552

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: JB SWITCH TACTILE SPST-NO 0.05A 24V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Tactile Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JB15LPC-JC.pdf

Request Quotation for JB15LPC-JC

Company Name

Contact Person

Phone Number

Address

Email

Message

JB15LPC-JC Specifications

Manufacturer Part Number	JB15LPC-JC
Future Part Number	FT-JB15LPC-JC
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	JB
JB15LPC-JC Status (Lifecycle)	In Stock
Part Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Square Button
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	11.20mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	10.00mm x 10.00mm
Illumination	Illuminated
Illumination Type, Color	LED, Red
Illumination Voltage (Nominal)	1.8 VDC
Operating Force	176gf
Ingress Protection	-
Features	Process Sealed
Operating Temperature	-25°C ~ 70°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JB15LPC-JC Weight	Contact Us
Replacement Part Number	JB15LPC-JC-FT
