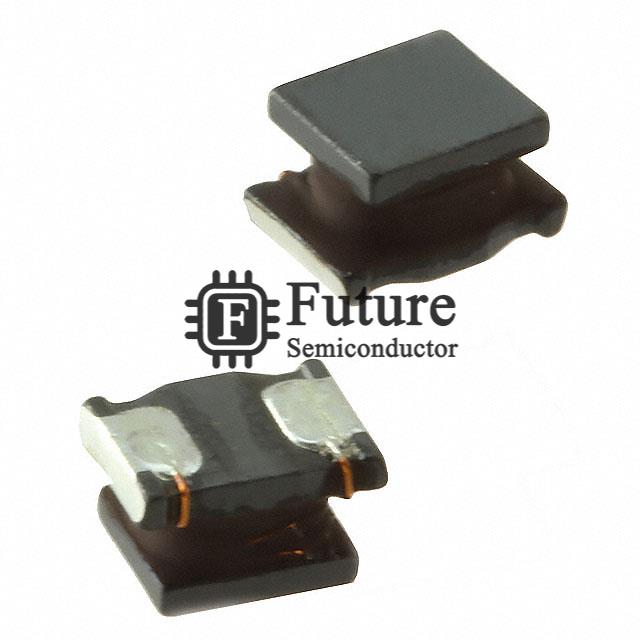

Murata Electronics North America LQH43PN100M26L

Name: LQH43PN100M26L
Brand: Murata Electronics North America
SKU: LQH43PN100M26L
Price: 0.157728 USD
Availability: InStock
Rating: 4.7 (740 reviews)

MFG Part Number: LQH43PN100M26L

Available Quantity: 24890 Pieces

Reference Price: USD 0.157728

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Murata Electronics North America

Brief Description: LQH43 FIXED Inductors 10UH 1.17A 177 MOHM

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: LQH43PN100M26L.pdf

Request Quotation for LQH43PN100M26L

Company Name

Contact Person

Phone Number

Address

Email

Message

LQH43PN100M26L Specifications

Manufacturer Part Number	LQH43PN100M26L
Future Part Number	FT-LQH43PN100M26L
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	LQH43
LQH43PN100M26L Status (Lifecycle)	In Stock
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10µH
Tolerance	±20%
Current Rating	1.17A
Current - Saturation	1.05A
Shielding	Shielded
DC Resistance (DCR)	176.4 mOhm Max
Q @ Freq	-
Frequency - Self Resonant	20MHz
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	1MHz
Features	-
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Supplier Device Package	1812 (4532 Metric)
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.110" (2.80mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
LQH43PN100M26L Weight	Contact Us
Replacement Part Number	LQH43PN100M26L-FT
