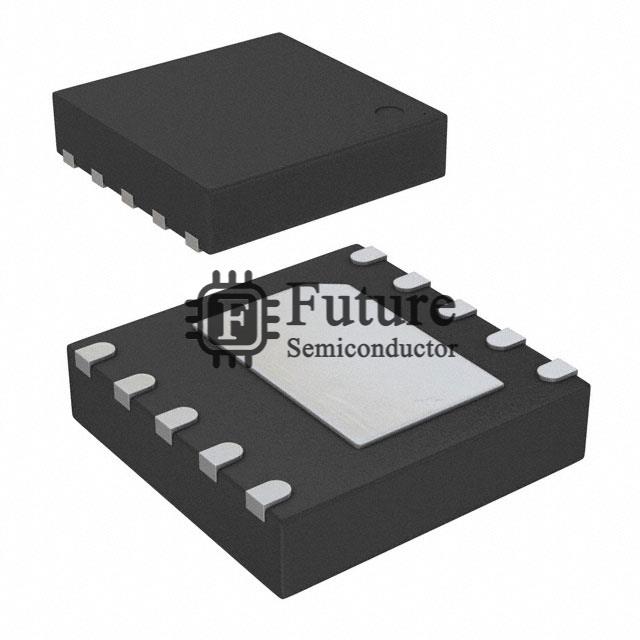

ON Semiconductor NCP5109BMNTWG

Name: NCP5109BMNTWG
Brand: ON Semiconductor
SKU: NCP5109BMNTWG
Availability: InStock
Rating: 5.0 (68 reviews)

MFG Part Number: NCP5109BMNTWG

Available Quantity: 92960 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - IC DRIVER HI/LO 600V 10DFN

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - Gate Drivers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: NCP5109BMNTWG.pdf

Request Quotation for NCP5109BMNTWG

Company Name

Contact Person

Phone Number

Address

Email

Message

NCP5109BMNTWG Specifications

Manufacturer Part Number	NCP5109BMNTWG
Future Part Number	FT-NCP5109BMNTWG
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
NCP5109BMNTWG Status (Lifecycle)	In Stock
Part Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	10V ~ 20V
Logic Voltage - VIL, VIH	0.8V, 2.3V
Current - Peak Output (Source, Sink)	250mA, 500mA
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	200V
Rise / Fall Time (Typ)	85ns, 35ns
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
NCP5109BMNTWG Weight	Contact Us
Replacement Part Number	NCP5109BMNTWG-FT
