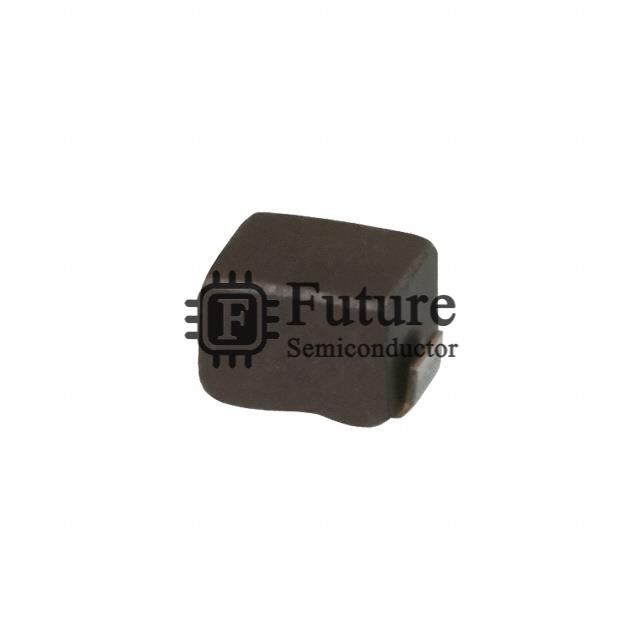

TDK Corporation NLFC201614T-220K-PF
- MFG Part Number
- NLFC201614T-220K-PF
- Available Quantity
- 65320 Pieces
- Reference Price
- USD 0
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- TDK Corporation
- Brief Description
- NLFC FIXED Inductors 22UH 75MA 1.7 OHM SMD
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Fixed Inductors
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- NLFC201614T-220K-PF.pdf
NLFC201614T-220K-PF Specifications
| Manufacturer Part Number | NLFC201614T-220K-PF |
|---|---|
| Future Part Number | FT-NLFC201614T-220K-PF |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | NLFC |
| NLFC201614T-220K-PF Status (Lifecycle) | In Stock |
| Part Status | Obsolete |
| Type | - |
| Material - Core | - |
| Inductance | 22µH |
| Tolerance | ±10% |
| Current Rating | 75mA |
| Current - Saturation | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.7 Ohm |
| Q @ Freq | 10 @ 2.52MHz |
| Frequency - Self Resonant | 16MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 2.52MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) |
| Size / Dimension | 0.083" L x 0.063" W (2.10mm x 1.60mm) |
| Height - Seated (Max) | 0.063" (1.60mm) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| NLFC201614T-220K-PF Weight | Contact Us |
| Replacement Part Number | NLFC201614T-220K-PF-FT |
