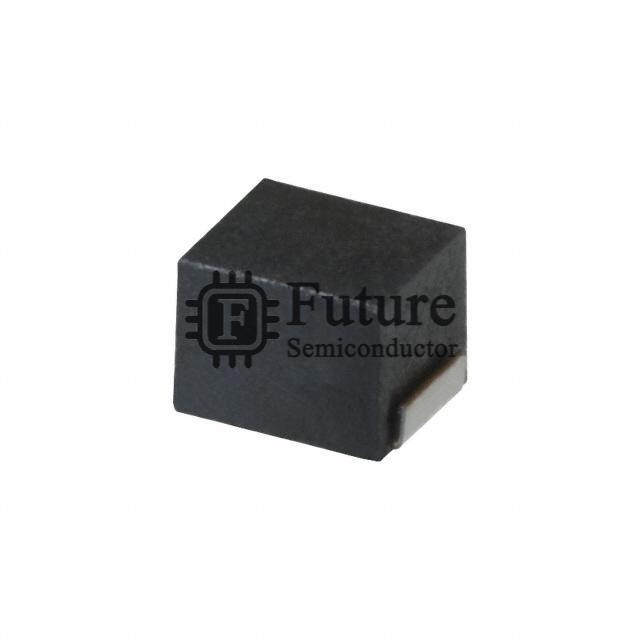

TDK Corporation NLHV25T-R68J-PF

Name: NLHV25T-R68J-PF
Brand: TDK Corporation
SKU: NLHV25T-R68J-PF
Availability: InStock
Rating: 4.6 (611 reviews)

MFG Part Number: NLHV25T-R68J-PF

Available Quantity: 44470 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TDK Corporation

Brief Description: NLHV FIXED Inductors 680NH 300MA 980 MOHM

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: NLHV25T-R68J-PF.pdf

Request Quotation for NLHV25T-R68J-PF

Company Name

Contact Person

Phone Number

Address

Email

Message

NLHV25T-R68J-PF Specifications

Manufacturer Part Number	NLHV25T-R68J-PF
Future Part Number	FT-NLHV25T-R68J-PF
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	NLHV
NLHV25T-R68J-PF Status (Lifecycle)	In Stock
Part Status	Obsolete
Type	Wirewound
Material - Core	-
Inductance	680nH
Tolerance	±5%
Current Rating	300mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	980 mOhm Max
Q @ Freq	40 @ 25.2MHz
Frequency - Self Resonant	180MHz
Ratings	-
Operating Temperature	-40°C ~ 105°C
Inductance Frequency - Test	25.2MHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.071" (1.80mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
NLHV25T-R68J-PF Weight	Contact Us
Replacement Part Number	NLHV25T-R68J-PF-FT
