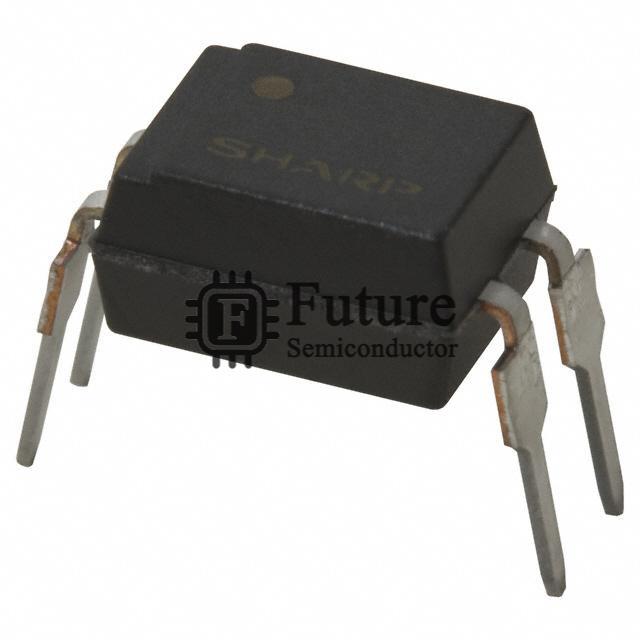

SHARP/Socle Technology PC853XNNSZ0F

Name: PC853XNNSZ0F
Brand: SHARP/Socle Technology
SKU: PC853XNNSZ0F
Availability: InStock
Rating: 4.5 (442 reviews)

MFG Part Number: PC853XNNSZ0F

Available Quantity: 16700 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: SHARP/Socle Technology

Brief Description: PC853X ISOLATOR

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Optoisolators - Transistor, Photovoltaic Output

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PC853XNNSZ0F.pdf

Request Quotation for PC853XNNSZ0F

Company Name

Contact Person

Phone Number

Address

Email

Message

PC853XNNSZ0F Specifications

Manufacturer Part Number	PC853XNNSZ0F
Future Part Number	FT-PC853XNNSZ0F
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	PC853X
PC853XNNSZ0F Status (Lifecycle)	In Stock
Part Status	Discontinued at Future Semiconductor
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	1000% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	100µs, 20µs
Input Type	DC
Output Type	Darlington
Voltage - Output (Max)	350V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50mA
Vce Saturation (Max)	1.2V
Operating Temperature	-30°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PC853XNNSZ0F Weight	Contact Us
Replacement Part Number	PC853XNNSZ0F-FT
