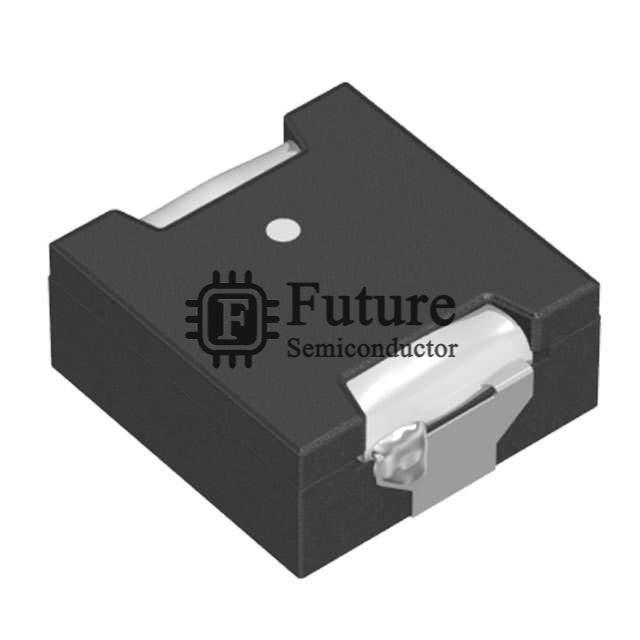

TDK Corporation RLF12560T-100M7R5
- MFG Part Number
- RLF12560T-100M7R5
- Available Quantity
- 88470 Pieces
- Reference Price
- USD 1.08
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- TDK Corporation
- Brief Description
- RLF FIXED Inductors 10UH 7.8A 12.4 MOHM
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Fixed Inductors
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- RLF12560T-100M7R5.pdf
RLF12560T-100M7R5 Specifications
| Manufacturer Part Number | RLF12560T-100M7R5 |
|---|---|
| Future Part Number | FT-RLF12560T-100M7R5 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | RLF |
| RLF12560T-100M7R5 Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 10µH |
| Tolerance | ±20% |
| Current Rating | 7.8A |
| Current - Saturation | 7.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 14.88 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.504" L x 0.492" W (12.80mm x 12.50mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| RLF12560T-100M7R5 Weight | Contact Us |
| Replacement Part Number | RLF12560T-100M7R5-FT |
