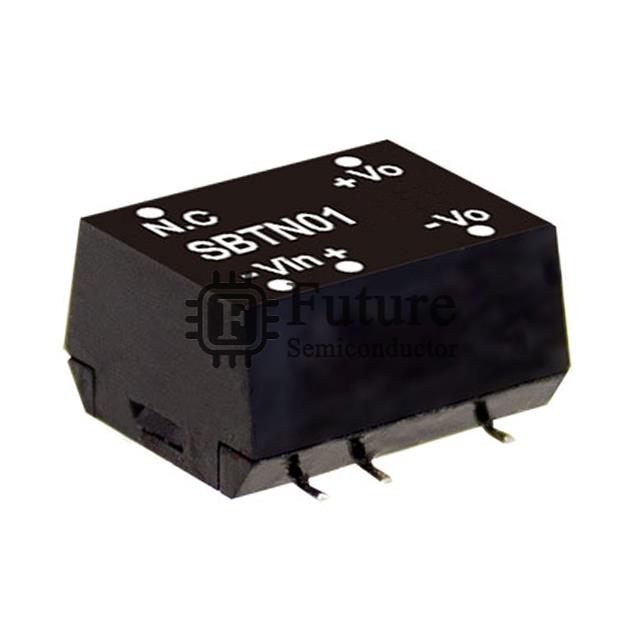

MEAN WELL USA Inc. SBTN01N-12
- MFG Part Number
- SBTN01N-12
- Available Quantity
- 20860 Pieces
- Reference Price
- USD 2.888
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- MEAN WELL USA Inc.
- Brief Description
- SBTN01 (1W) DC DC CONVERTER 12V 1W
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- DC DC Converters
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- SBTN01N-12.pdf
SBTN01N-12 Specifications
| Manufacturer Part Number | SBTN01N-12 |
|---|---|
| Future Part Number | FT-SBTN01N-12 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | SBTN01 (1W) |
| SBTN01N-12 Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 84mA |
| Power (Watts) | 1W |
| Voltage - Isolation | 1500V |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 90°C (With Derating) |
| Efficiency | 79% |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension | 0.51" L x 0.43" W x 0.28" H (12.9mm x 10.9mm x 7.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| SBTN01N-12 Weight | Contact Us |
| Replacement Part Number | SBTN01N-12-FT |
