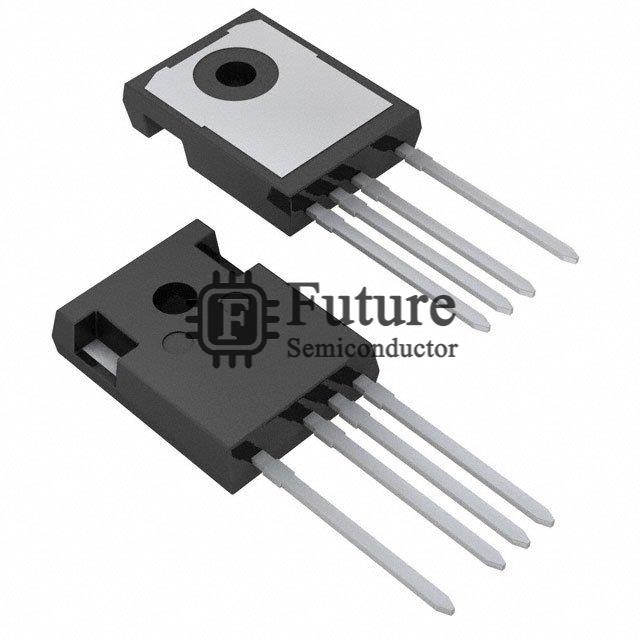

STMicroelectronics STGW80H65DFB-4

Name: STGW80H65DFB-4
Brand: STMicroelectronics
SKU: STGW80H65DFB-4
Price: 7.946 USD
Availability: InStock
Rating: 4.8 (314 reviews)

MFG Part Number: STGW80H65DFB-4

Available Quantity: 72880 Pieces

Reference Price: USD 7.946

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: STMicroelectronics

Brief Description: - IGBT BIPO 650V 80A TO247

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - IGBTs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: STGW80H65DFB-4.pdf

Request Quotation for STGW80H65DFB-4

Company Name

Contact Person

Phone Number

Address

Email

Message

STGW80H65DFB-4 Specifications

Manufacturer Part Number	STGW80H65DFB-4
Future Part Number	FT-STGW80H65DFB-4
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
STGW80H65DFB-4 Status (Lifecycle)	In Stock
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	120A
Current - Collector Pulsed (Icm)	240A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 80A
Power - Max	469W
Switching Energy	2.1mJ (on), 1.5mJ (off)
Input Type	Standard
Gate Charge	414nC
Td (on/off) @ 25°C	84ns/280ns
Test Condition	400V, 80A, 10 Ohm, 15V
Reverse Recovery Time (trr)	85ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-4
Supplier Device Package	TO-247-4L
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
STGW80H65DFB-4 Weight	Contact Us
Replacement Part Number	STGW80H65DFB-4-FT
