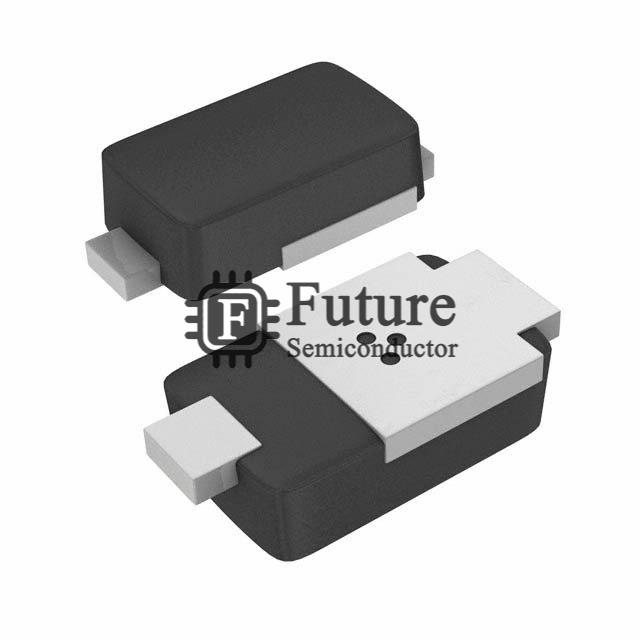

STMicroelectronics STPS120MF

Name: STPS120MF
Brand: STMicroelectronics
SKU: STPS120MF
Price: 0.11872 USD
Availability: InStock
Rating: 4.9 (218 reviews)

MFG Part Number: STPS120MF

Available Quantity: 48290 Pieces

Reference Price: USD 0.11872

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: STMicroelectronics

Brief Description: - DIODE SCHOTTKY 20V 1A STMITEFLAT

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: STPS120MF.pdf

Request Quotation for STPS120MF

Company Name

Contact Person

Phone Number

Address

Email

Message

STPS120MF Specifications

Manufacturer Part Number	STPS120MF
Future Part Number	FT-STPS120MF
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
STPS120MF Status (Lifecycle)	In Stock
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	20V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	490mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	3.9µA @ 20V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	DO-222AA
Supplier Device Package	STmite Flat
Operating Temperature - Junction	150°C (Max)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
STPS120MF Weight	Contact Us
Replacement Part Number	STPS120MF-FT
