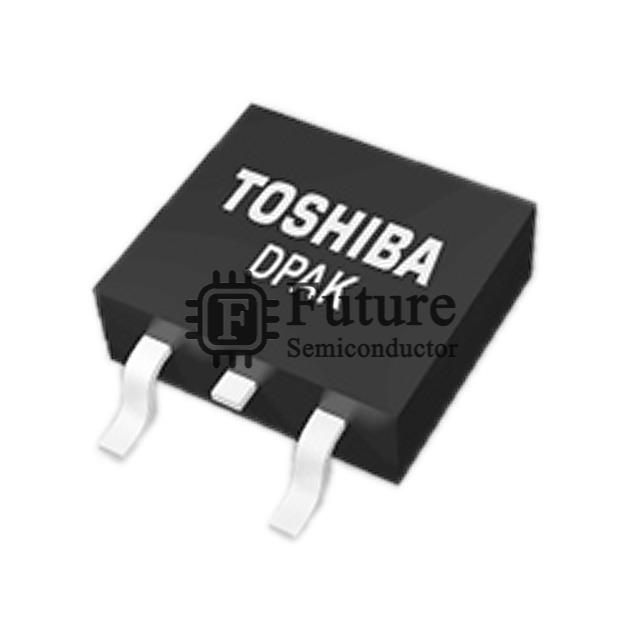

Toshiba Semiconductor and Storage TK3R1P04PL,RQ
- MFG Part Number
- TK3R1P04PL,RQ
- Available Quantity
- 91860 Pieces
- Reference Price
- USD 0.43008
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Toshiba Semiconductor and Storage
- Brief Description
- U-MOSIX-H MOSFET N-CHANNEL 40V 58A DPAK
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Transistors - FETs, MOSFETs - Single
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- TK3R1P04PL,RQ.pdf
TK3R1P04PL,RQ Specifications
| Manufacturer Part Number | TK3R1P04PL,RQ |
|---|---|
| Future Part Number | FT-TK3R1P04PL,RQ |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | U-MOSIX-H |
| TK3R1P04PL,RQ Status (Lifecycle) | In Stock |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 58A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.1 mOhm @ 29A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 500µA |
| Gate Charge (Qg) (Max) @ Vgs | 60nC @ 10V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4670pF @ 20V |
| FET Feature | - |
| Power Dissipation (Max) | 87W (Tc) |
| Operating Temperature | 175°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| TK3R1P04PL,RQ Weight | Contact Us |
| Replacement Part Number | TK3R1P04PL,RQ-FT |
